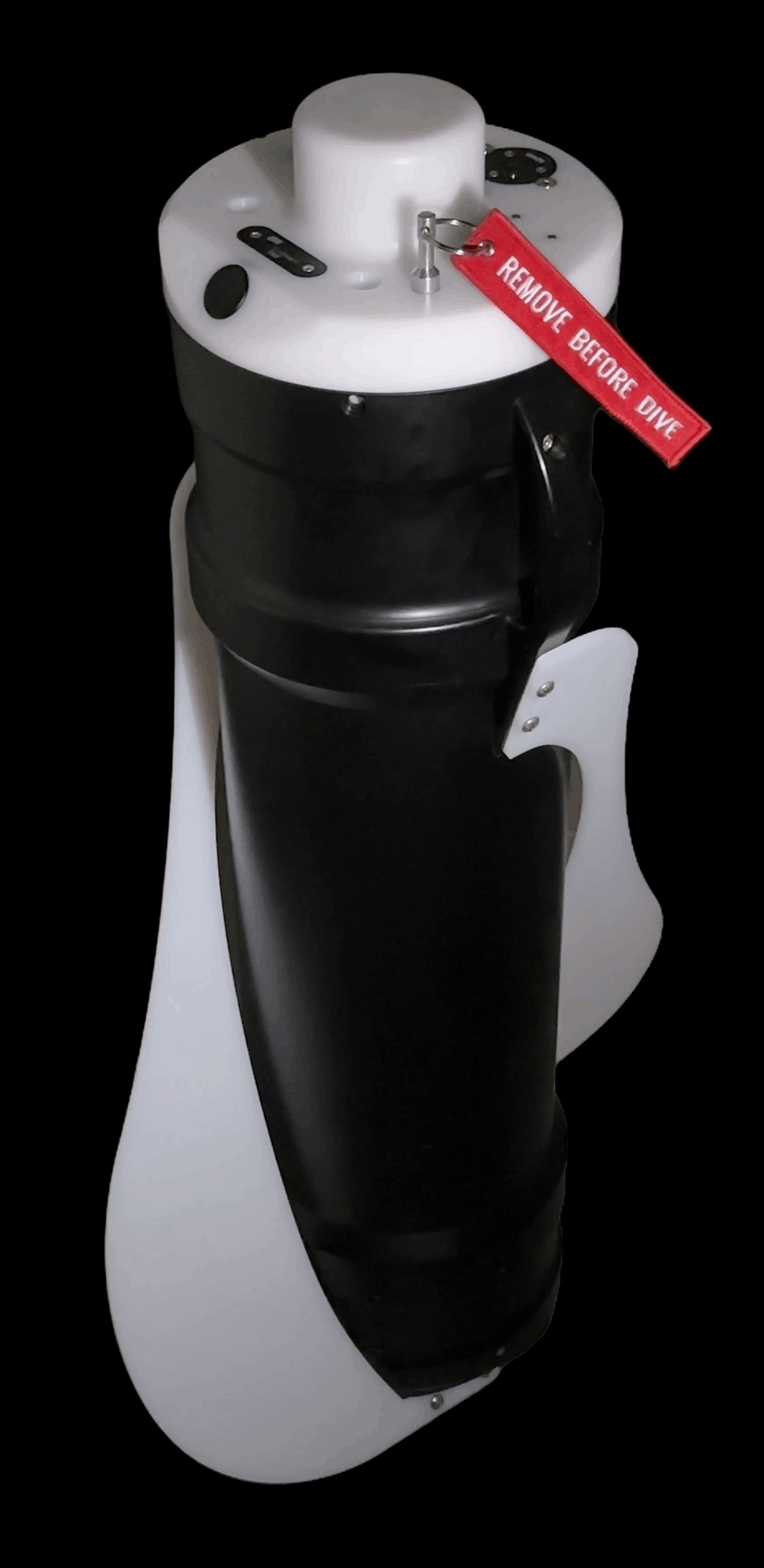

Dark Drone

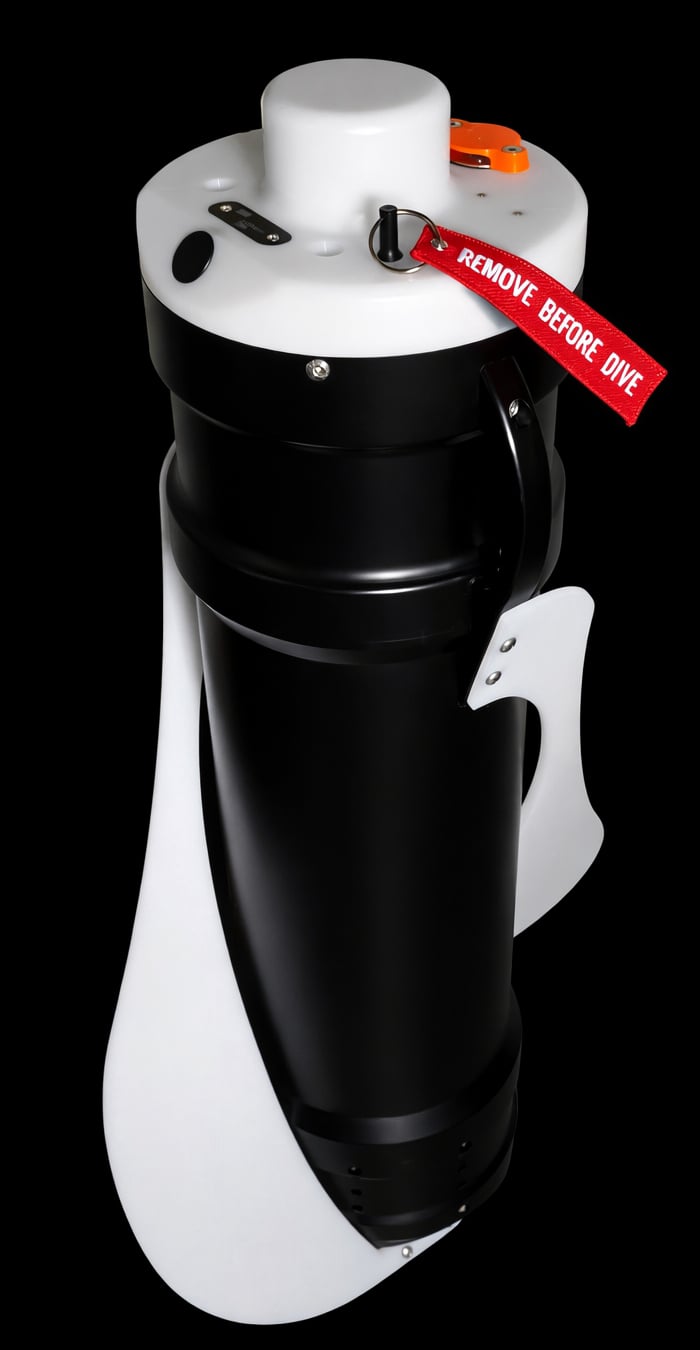

Drone Model3
simply magic


Connectivity
Iridium satellite network - transmit data and receive commands (surface only)


Sensors
Aanderaa optical d.o. oxygen
40 kHz Echosounder
EZ conductive salinity
Custom (low maintenance) turbidity
And others


Control
Magnetic switch - reset / disable
LED and audio indicators


Handling
21 kg in air (±0.7 kg in water)
Handles for safe carrying


Battery
Capacity: 1.7kWh  /  4000 profiles @ 35m
Alkaline - safe storage and transport (no lithium)
Primary - replaced when drained


Wings
Rotates on ascent - scans cage (patented)
Removable - for easy transport


Buoyancy chamber
Pulls in water to sink, pushes out to float (pat.)
Max certified depth 50m (break point 75m)


I want to try it
Mobirise Website Builder

The magic
buoyancy mechanism

The buoyancy mechanism of the Model3 pulls water in and out of the chamber for the drone to sink and to float. It allows the drone to move up and down in the cage (patented). It's energy efficient and extends the battery life to months of operation. It is soft so not to cause friction, but is strong enough to push against hundreds of kilos of pressure. It's rugged and can handle to be filled with debris and marine growth and still ensure thousands of journeys to surface before needing maintenance. Robust magic.

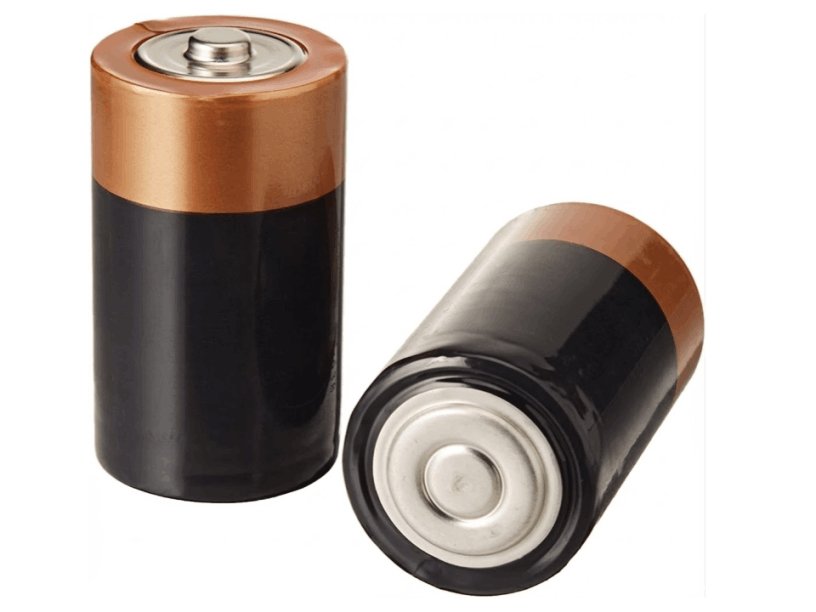

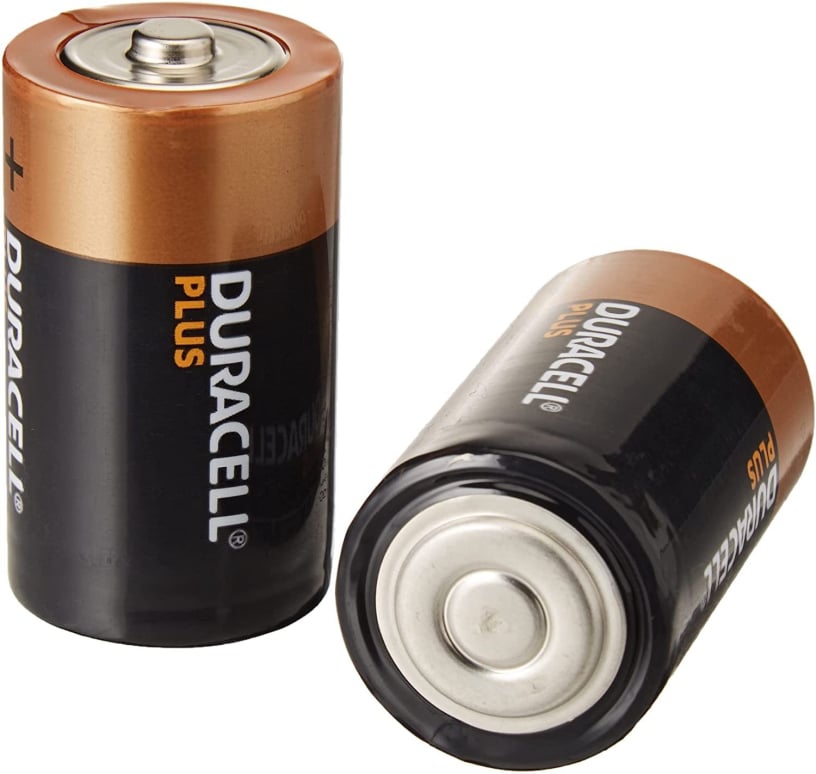

LR20

The simple

alkaline battery pack

Using traditional alkaline batteries instead of the more modern lithium-ion makes the drone bigger, heavier and requires complex power management. It also makes it safer and capable of being shipped anywhere without the regulations placed on lithium-ion transportation. Simple and practical.

Fish distribution

The beautiful
no-maintenance turbidity sensing

Turbidity (particles in the water) is crucial for fish health but traditionally hard to measure without high maintenance or complex cleaning systems. Our unique sensor design overcomes this and adds color spectrum analysis to give stable insights into aquaculture.


Mobirise Website Builder

Trial by sea

Continuously improving from our original idea has made our latest generation of underwater drones better, more rugged, smarter, safer and easier to use.

I  want to try it

‌
